Validation

Validation in App Studio ensures that users provide correct and complete information before submitting data. By defining validation rules on input components, you can prevent errors, improve data quality, and provide clear feedback to users about what's expected.

To set up validation rules, use:

• Validation menu: Define validation rules directly in components using their validation properties.
• Triggering validation: Use the Field validation action to check all validation rules before sending data.

Validation menu

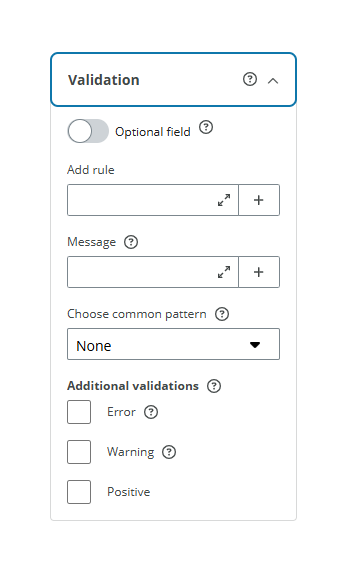

The Validation menu is available in some components to allow you to define validation rules in your app.

The following table shows the validation properties for each component.

Properties	Components
Optional field	Drawing area, Dropdown, Combobox, File uploader, Radio, Text area and Text input
Choose common pattern	Text input Note: Only for Text, Phone number, Email, URL, Password and Search Types.
Additional validations	File uploader, Radio, Text area and Text input

Optional field

By default, all components are required in all instances. You can use Liquid templating to add a rule to specify when the component should be required. If the user fails to fill in the component, a default message is displayed. You can also, enter your own message.

You can turn on the Optional field property to make the component optional.

The following table describes the properties available to add rules for required fields:

Property	Description	Required
Add rule	Add rules in Liquid JS to specify when the component is required. If no rules are set, the component will be required in all instances.	No
Message	Enter a message to be displayed if the user does not fill in the input. A default message is otherwise shown.	No

Choose common pattern

Select a validation pattern from the Choose common pattern drop-down menu to define the expected input data type for your field. See Available common patterns for more details.

If the user input does not match the selected pattern, the component automatically displays a default validation message.

Note: if overlapping validation conditions occur, then the hierarchy is: Required > Common pattern > Error > Warning > Informative.

Available common patterns

The following table lists the available common pattern options and the defined regular expressions for them:

Pattern	Description	Validation regular expression
None	Does not match any string and is used when no pattern is required.	None
Number (negative and decimals)	Matches any valid number, including negative numbers and decimals.	'^-?\d+((\.|,)\d*)?$'
Digit	Matches any positive integer, that is, numbers without decimals or negatives.	'^\d+$'
Word (only alphanumeric)	Matches any word that contains only alphanumeric characters, that is, letters and numbers.	'^[A-Za-z0-9ñÑçÇáéíóúÁÉÍÓÚüÜ]+$'
Word (special characters allowed)	Matches any word that contains alphanumeric characters as well as certain special characters such as periods, commas, and semicolons.	"^[A-Za-z0-9ñÑçÇáéíóúÁÉÍÓÚüÜ\.,;:!?()_\x22'%\-]+$"
Text	Matches any string that contains alphanumeric characters, spaces and certain special characters such as periods, commas, and semicolons.	"^[A-Za-z0-9ñÑçÇáéíóúÁÉÍÓÚüÜ\.,;:!?()\x22'%\-\s]+$"
Letter	Matches any single letter (uppercase or lowercase) as well as certain letters in Spanish, such as ñ, á, é, í, ó, and ú. Note: if you need to have a pattern rule for other characters, for example Nordic characters, then you can do this by creating an additional validation pattern using Liquid JS templating in the Error rule property.	'^[A-Za-zñÑçÇáéíóúÁÉÍÓÚüÜ]$'
Email	Matches any valid email address.	'^[^\s@]+@([\^\s@.,]+\.)+[^\s@.,]{2,}$'
URL	Matches any valid URL, including protocols such as http, https, ftp, mailto, etc.	'^((?:http|https|ftp|mailto|file|data|irc):\/\/)?[A-Za-z0-9\-]{0,63}(\.[A-Za-z0-9\-]{0,63})+(:\d{1,4})?\/(\/[A-Za-z0-9\-._]+\/)(\?.)?(#.)?$'
Date: mm/dd/yyyy	Matches any date in the format MM/DD/YYYY (month/day/year) where MM is the month in two digits (01-12), DD is the day in two digits (01-31), and YYYY is the year in four digits (for example 2022).	'^(0[1-9]|1[0-2])\/(0[1-9]|[12][0-9]|3[01])\/\d$'
Date: dd/mm/yyyy	Matches dates in the format DD/MM/YYYY, where DD is the day (01-31), MM is the month (01-12), and YYYY is the year (for example 2022). .	'^(0[1-9]|[12][0-9]|3[01])\/(0[1-9]|1[0-2])\/\d$'
Time 12H: HH:MM AM/PM	Matches times in 12-hour format, with an optional space and either "AM" or "PM" at the end. The pattern matches if the hour value is either "00", "12", or a value between 1-11 (with or without a leading zero), and the minute value is between 00-59. The optional space and AM/PM values are matched using regular expression alternation.	'^((00|12):00|(1[01]|0?[1-9]):([0-5]\d))\s?((A|P)\.?M\.?)$'
Time 24H: HH:MM:SS	Matches times in 24-hour format, with hours in the range 00-23 and minutes and seconds in the range 00-59. The pattern uses grouping and repetition to ensure that the minute and second values each consist of two digits.	'^(2[0-3]|[01]\d|\d)(:[0-5]\d$'
Strong password	Matches strong passwords that meet the following criteria: - is at least 8 characters long. - contains at least one uppercase letter. - contains at least one lowercase letter. - contains at least one digit. - contains at least one special character from the given set. The pattern uses positive lookahead assertions to check for the presence of each required character type, and a character class to match any of the allowed special characters.	"\^(?=.[A-Z])(?=.[a-z])(?=.\d)(?=.[!?@#$%^&()\-+\\\/.,:;\x22'{ }\[\]<>~])[A-Za-z0-9ñÑçÇáéíóúÁÉÍÓÚüÜ!?@#$%^&()-+\\\/.,:;\x22'{ }\[\]<>~]{8,}$"
IPv4	Matches valid IPv4 addresses that consist of four decimal numbers separated by periods. Each decimal number must be in the range 0-255, with the exception that leading zeroes are not allowed (for example, 01). The pattern uses alternation to match any of the four possible formats for a decimal number, that is, a single digit, two digits starting with 1, two digits starting with 2-9, or three digits starting with 1.	'^(?:25[0-5]|2[0-4]\d|[01]\d|\d{1,2})(?:.(?:25[0-5]|2[0-4]\d|[01]\d|\d{1,2}))$'
IPv6	Matches valid IPv6 addresses that consist of up to eight groups of four hexadecimal digits separated by colons. The pattern uses grouping and repetition to match each group, with an optional space between groups. The pattern allows for leading zeroes and both uppercase and lowercase hexadecimal digits.	'^(?:[A-Fa-f0-9]){0,4}(?: ?:? ?(?:[A-Fa-f0-9]){0,4}){0,7}$'

Note: Only for Text, Phone number, Email, URL, Password and Search Types.

Example: Validating a numeric input with Digit pattern

---

When using the Text input component with the Type property set to Number, the HTML5 <input type="number"> allows exponential notation (for example, 2e4), negative numbers, and floating-point numbers according to browser implementation. To restrict input to digits only and validate against characters like exponential notation:

1. In the Styles menu, set Type to Text.
2. In the Validation menu, select Choose common pattern as Digit.
3. If the user enters invalid input such as 2e4, an error message is displayed.
4. Use the Field validation action in the Logic map to prevent sending requests when the input is invalid. See Field validation for more details.

Note: Only the properties relevant to the example are explained. See the Text input component for more details.

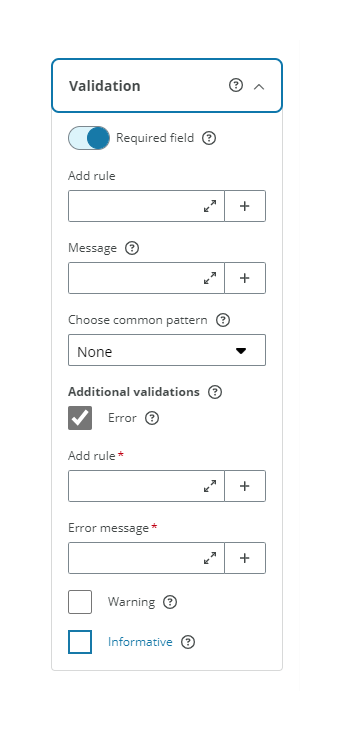

Additional Validations

For components that allow additional validations, you can add rules using Liquid templating.

Property	Description		Required
Additional validations	Select any or all checkboxes to add validations.		No
	Error	Select the checkbox to add a red error style validation to the component.	No
	Add rule	Add rules in Liquid JS to specify when the error validation is shown.	Yes
	Error message	Enter a message to be displayed if the user fills in the input incorrectly.	Yes
	Warning	Select the checkbox to add an orange warning style validation to the component.	No
	Add rule	Add rules in Liquid JS to specify when the warning validation is shown.	Yes
	Warning message	Enter a message to give the user advice on how to better fill in the input.	Yes
	Positive	Select the checkbox to add a green positive style validation to the component.	No
	Add rule	Add rules in Liquid JS to specify when the positive validation is shown.	Yes
	Positive message	Enter a message to tell the user that the input has been correctly filled in.	Yes

Note: if overlapping validation conditions occur, then the hierarchy is: Required > Common pattern > Error > Warning > Informative.

Triggering validation

To perform validation before sending data, you must use the Field validation action than can be configured in a Button component.

When the Field validation action is executed, it checks all validation rules defined on the selected input components (required fields, common patterns and additional validations). If any validation fails, the corresponding error messages are displayed and the data submission is prevented.

For more information on configuring the Field validation action, see Field validation.

Example: Validating date input before sending data

To validate a Text input component with a date format before sending data using the Field validation action, follow these steps:

Step 1: Configure the Text input component

1. Add a Text input component to your Canvas.
2. In the Main menu:
3. Set Component ID to dateInput (or any unique identifier).
4. Set Label to Enter date.
5. Set Placeholder to MM/DD/YYYY.
6. In the Styles menu:
7. Set Type to Text.
8. In the Validation menu:
9. Keep the Optional field switch turned off to make the field required.
10. From the Choose common pattern drop-down, select Date: mm/dd/yyyy.
11. Optionally, add a custom Message such as "Please enter a valid date in MM/DD/YYYY format".

Step 2: Add a Button component

1. Add a Button component to your Canvas.
2. In the Main menu:
3. Set Component ID to submitButton.
4. Set Label to Submit.

Step 3: Configure the Field validation action

1. Select the Button component.
2. In the bottom-right corner, open the Logic map tab.
3. In the Logic drawer on the left, locate the On click event and the Field validation action and drag them to the viewport.
4. Connect the On click event output port to the Field validation action input port.
5. Select the Field validation action node to configure its properties in the panel to the right:
6. In Description, optionally enter "Validate date input".
7. In Fields, select the Component ID of the field you want to validate from the drop-down list. For this example, select dateInput.

Step 4: Add the HTTP Request action

1. Drag an HTTP Request action from the Actions section and drop it into the viewport.
2. Connect the green output port of the Field validation action to the HTTP Request action input port.
3. Configure the HTTP Request action:
4. Select your configured HTTP resource that sends the data.
5. Configure any additional properties as needed.

Step 5: Optional - Add error handling

1. Drag a Toast action to the viewport.
2. Connect the red output port of the Field validation action to the Toast action input port.
3. Configure the Toast action:
4. Set Variant to Negative.
5. Set Title to "Validation failed".
6. Set Message to "Please correct the date format before submitting".

Result:

When the user selects the Submit button:

• If the date input is valid (matches the MM/DD/YYYY format), the green output port is triggered and the HTTP request is sent.
• If the date input is invalid or empty, the red output port is triggered, the error message is displayed on the component, and the HTTP request is not sent.

Note: Only the properties relevant to the example are explained. See Field validation and HTTP Request for complete property details.
