Liquid JS template language support

Overview

Liquid JS is an open-source template language that is used in many web applications to place dynamic content and modify data. All the Liquid JS API and syntax are fully supported in App Studio.

To learn more about Liquid JS, see the official Liquid JS documentation.

Categories

In Liquid JS, there are three types of code: objects, tags, and filters.

Objects

Objects are surrounded by matched pairs of curly braces {{}}. They can be used in App Studio to show content. The objects resolve to the initial type of the field.

Here are a couple of object example outputs:

  1. {{user.name}} This example results in a string.

  2. {{item.active}} This example results in a Boolean and it is not converted to a string.

Tags

Tags which do not resolve to text are surrounded by a matched pair of curly braces and percent signs {% and %}. They are used for logic operations and control flow for templates.

{% if res10.supplierId != blank %}Updated by {% endif %}

Note: The text surrounded by the curly brace percentage delimiters has no visible output when the template is rendered.

Filters

Filters change the output of a Liquid JS object or variable. They are used within double curly braces {{}} and variable assignment, and are separated by a pipe character |, for example:

{{ user.name | upcase }}

App Studio quick tips

App Studio allows templating in Liquid JS. Templating term refers to using Liquid JS language to render dynamic content in the end-user app.

⚠️ Warning: Incorrect use of Liquid JS language might produce blank fields and cells in the end-user app. Be sure to check your Liquid JS syntax if this happens.

In this section you can find quick tips for:

Add rules to trigger properties

The Properties section of a component allows you to set rules to trigger some of the properties, such as Hidden, Disabled or Read only Interactions or the Required field Validation.

Here is a quick tip to set any of them using Read only as an example:

  1. Go to the Interactions section in your component. This example uses the Select component.
  2. Select the Read only checkbox.
  3. Enter the Liquid JS code {{checkbox1.value == true}} in the Rule field, where checkbox1 is the Component ID of the component that will trigger the property, in this case the Checkbox component.

In this example the component will be Read only only when the rule is fulfilled. Now, when the Checkbox component value matches the rule (in this case, when the checkbox is selected), the rule returns as valid (true). This triggers the rule, setting the component to Read only, in this example a Select component.

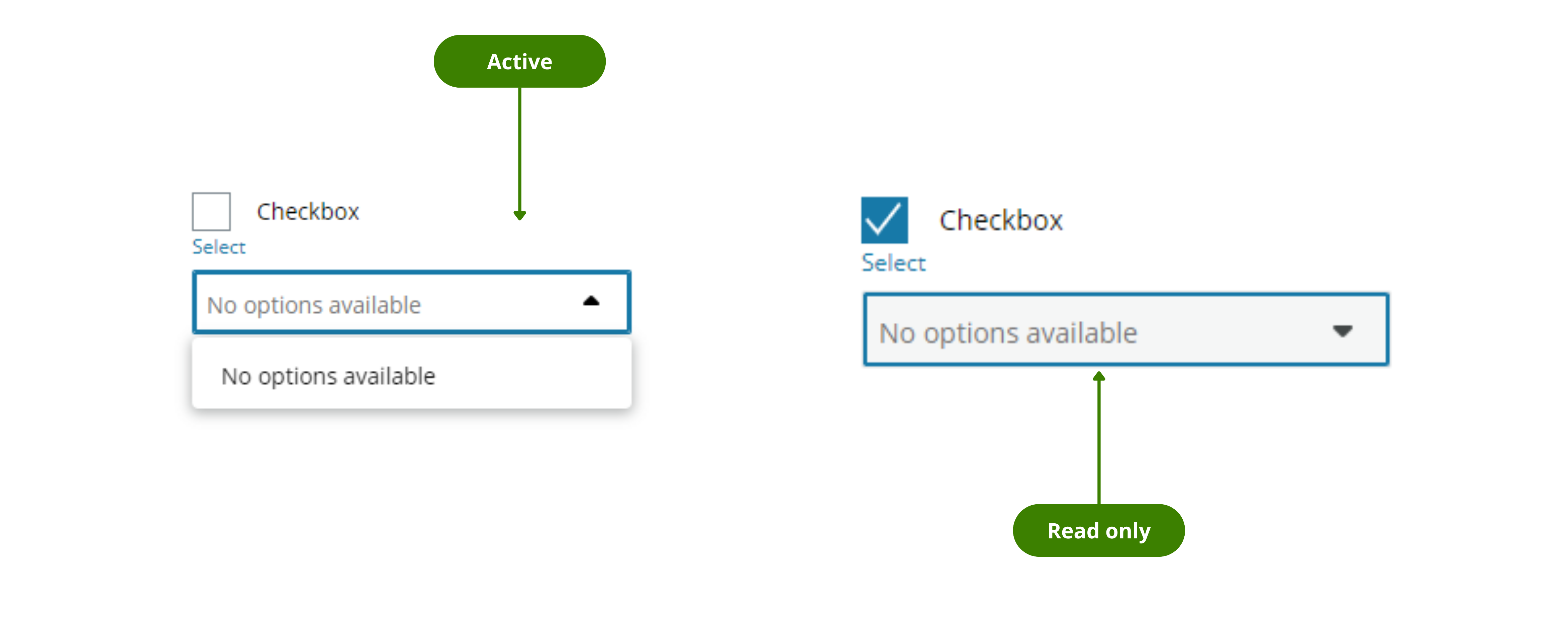

Read only rule example

Data grid component

You can use Liquid JS to use data from your resources or to use data from your components.

Get specific data from the Data grid component

Here is a quick tip if the data you need is a specific cell value of the Data grid component:

  1. Enter {{dataGridId.rows[3].columnID}} in the component field.

    • dataGridId specifies the table that you want to retrieve data from and is the Component ID of the Data grid component.

    • rows[3] specifies the row within the table, where the number corresponds to the array position. Note that in Liquid JS arrays, counting starts from 0.

    • columnID specifies the column of the Data grid component and is the Column ID of the column.

Get all data from the Data grid component

Here is a quick tip if you want to get all the data from your Data grid component in JSON format:

  1. Enter {{dataGridId.rows | json}} in the component field.

    • dataGridId specifies the table that you want to retrieve data from and is the Component ID of the Data grid component.

    • rows all the rows from the Data grid component.

    • json specifies the format in which you want to retrieve the data.

POST the Data grid component data using the HTTP resource

Here is a quick tip to serialise the data of your Data grid component to send them in JSON format:

  1. Go to your HTTP resource.

  2. Enter {{dataGridId.rows | json}} in the Content definition (following JSON format).

    • dataGridId specifies the table that you want to retrieve data from and is the Component ID of the Data grid component.

    • rows all the rows from the Data grid component. You can select other options like deletedrows.

    • json specifies the format in which you want to retrieve the data.

See the send complex request bodies with Liquid JS templating tutorial for a more complex use case.

Do operations between the properties of the resource in non-editable tables in the Data Grid component

Here is a quick tip if you want to have a column that shows the result of an operation between two properties of the Data grid component's resource:

  1. Open the Column menu of the column you want to show the result.

  2. To multiply the value of two properties, enter {{propertyName | times:propertyName}} in the Column data field.

    • propertyName specifies which properties of the resource array we want to use for the operation. Typically, the value entered in the Column data field of each row that we want to operate with. For example, {{Price | times:Qty}}. You can use the Templating drop-down to search for the properties.

To see what operations you can perform, see Liquid JS filters.

Do operations with columns in the Data grid component

Here is a quick tip if you want to have a column that shows the result of operations between two columns or resources in the Data grid component:

  1. Open the Column menu of the column you want to show the result.

  2. Select the Dynamic calculation checkbox.

  3. Enter the Liquid JS formula in the Formula field. For example, to multiply two values, enter {{colData.col1 | times: resData.quantity}}.

    • colData.col1 specifies the column with the value for the operation. You can use the Templating drop-down to search for the columns under the Column data entry.
    • resData.quantity specifies the property of the resource we want to use for the operation. You can use the Templating drop-down to search for the properties of the resource under the Resource data entry.

You can do operations between two column data or two properties of the resource as well. To see what operations you can perform, see Liquid JS filters.

Add a filter to a component

Here is a quick tip if you want to filter data from an array in your resources. This example has two components, where the second component filters data according to the value of the first.

  1. Enter {{res1 | where: 'propertyName', my1Component.value}} in the field of your second component.

    • res1 specifies the resource array that you want to filter data from and is the default name given to the resource.

    • propertyName specifies in which property from the resource array we want to filter.

    • my1Component.value is the value we want to filter, where my1Component is the Component ID of the first component.

Avoid unwanted line breaks

Here is a quick tip to avoid unwanted line breaks caused by indentation in your Liquid JS formula.

There are three ways to avoid them:

  1. Write the formula in one line.
  2. Use hyphens in your tag syntax to eliminate left and right whitespaces. For example: {% assign currentYear= "now" | date: "%Y" -%} This will eliminate the right whitespace. See Liquid JS documentation for more details.
  3. Use the filter | strip_newlines. See Liquid JS documentation for more details.

Use tags to display a message

Here is a quick tip if you want to use a Liquid JS tag to display a message.

{% if res10.supplierId != blank %}Updated by {% endif %}

{% if res10.supplierId != blank %}{res10.lastUpdated.updatedBy}{% endif %}

{% if res10.supplierId != blank %}, {res10.lastUpdated.updatedAt | date: "%m/%d/%Y %H:%M" } (User time zone) {% endif %}

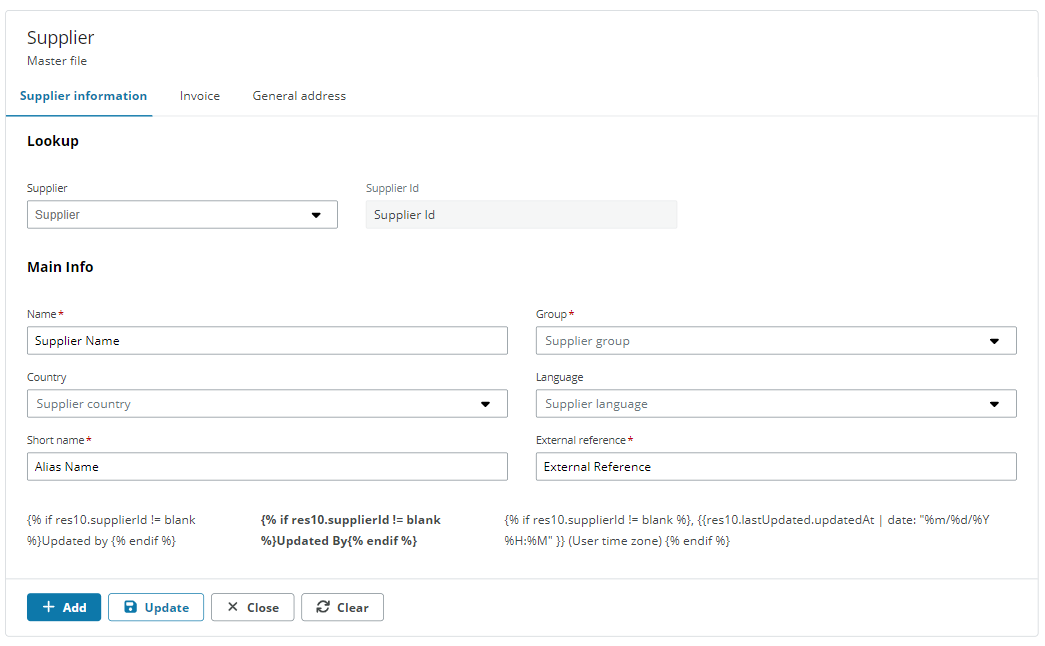

Example app with Liquid JS Tag and Filter

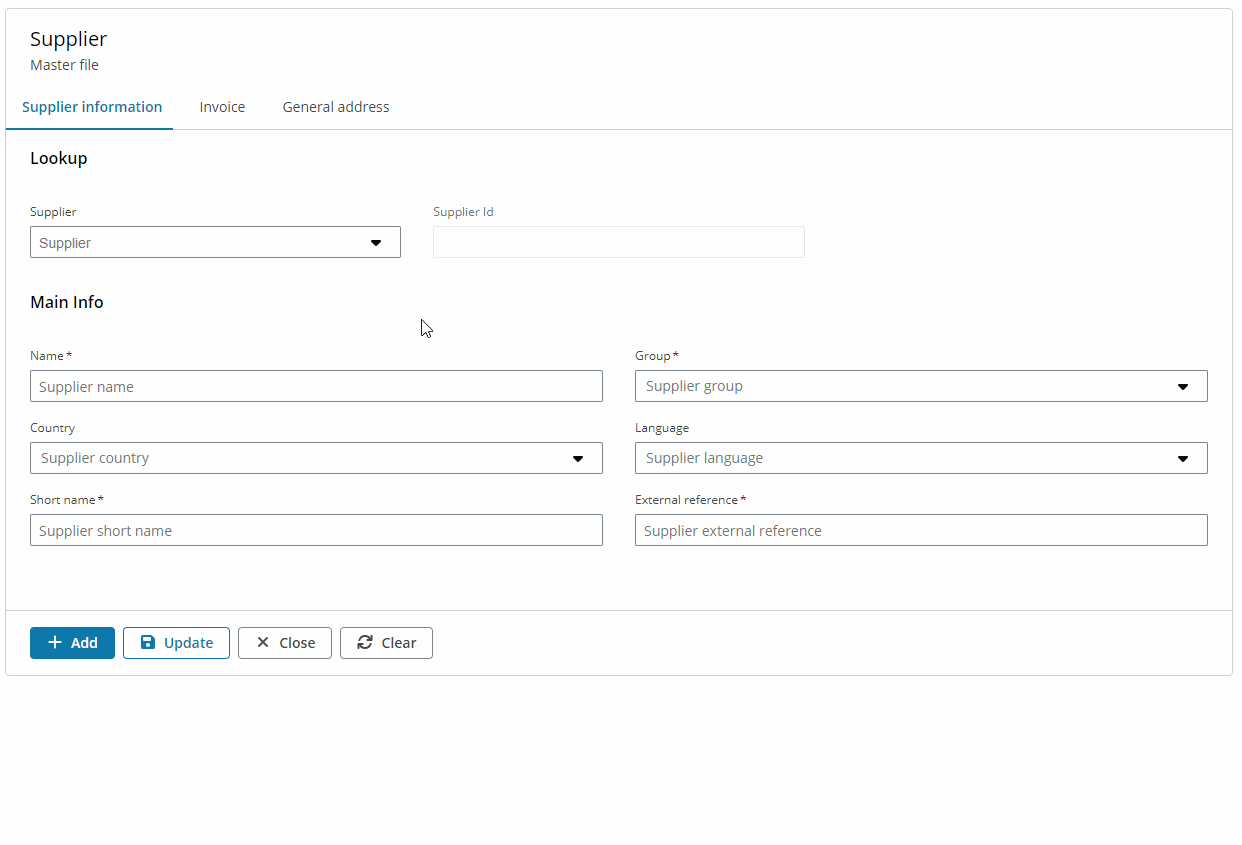

and here is a preview of the end-user app:

App Preview with Liquid JS Tag and Filter
