Send complex request bodies with Liquid templating (Ripple)

This tutorial shows how to use Liquid templating to send more customised JSON request bodies that combine user input with data from a Data grid component.

This example shows how to configure an app where the user can:

• Enter a batch ID and an interface name using Text inputs components
• Import data from an Excel using a Data grid component with the import functionality.
• Send the combined data as a structured JSON array using Liquid templating.

The app uses advanced Liquid templating techniques to generate dynamic JSON structures that combine Text inputs with Data grid data.

To start:

1. Select My Apps from the Extension Kit portal main menu.
2. Select the Create new app button and name your app.
3. Select the Create button.

Configure the app layout

❗ IMPORTANT: The components and resources have dependencies between them. To configure this app, you must go from the Canvas tab to the Resources tab and the Logic flow tab frequently.

Go to the Canvas tab:

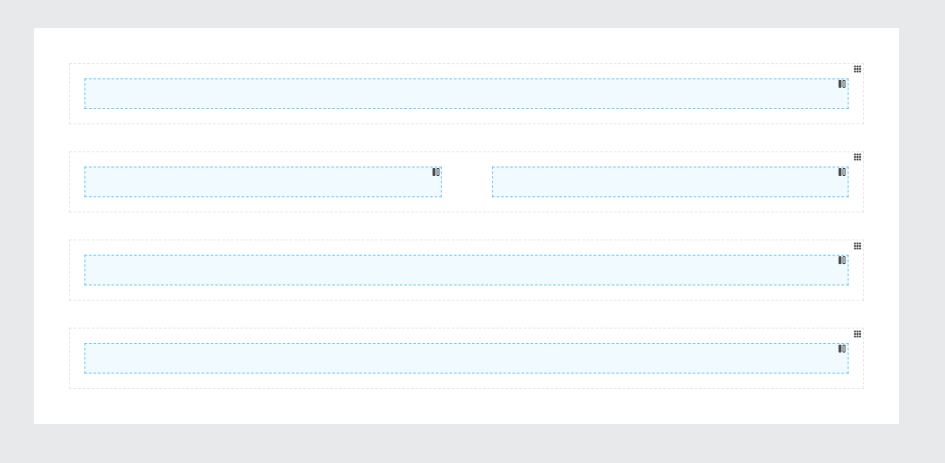

• Drag and drop the Layout components to the canvas. In this example we added the following components in this order:
  • Four containers:
    • First container: Single column layout (for the Text component)
    • Second container: Two columns layout with 50%/50% split (for the Text inputs components)
    • Third container: Single column layout (for the Data grid component)
    • Fourth container: Single column layout (for the Button component)

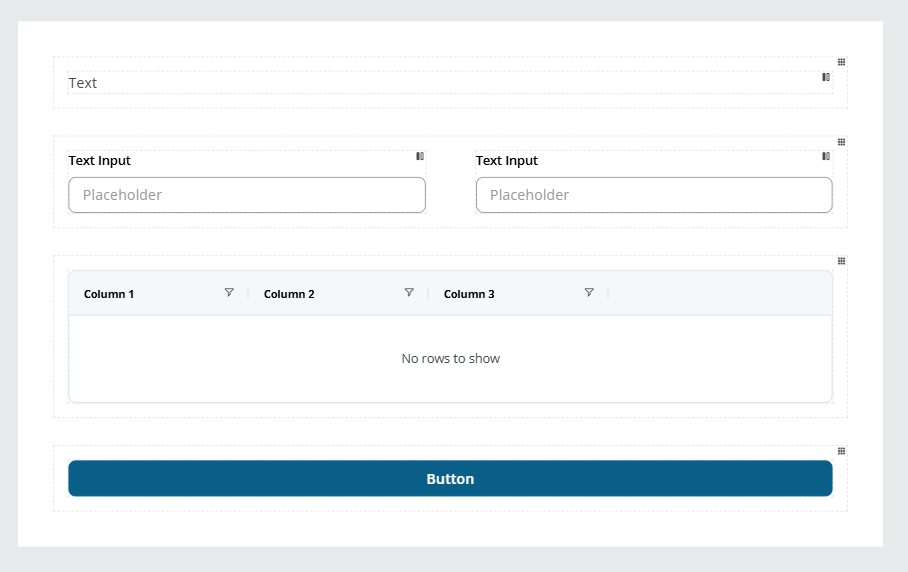

• Drag and drop the following components inside the Layout components, as shown in the image:
  • One Text component (for the title)
  • Two Text input components (for the batch ID and interface)
  • One Data grid component (for the transaction data)
  • One Button component (for sending the data)

Configure the Text component

In this example we configure the component as follows:

• Select the Text component in the canvas and go to the Properties panel.
  • Open the Main menu and configure:
    • Text: Enter the text: Batch Transaction Processing.
  • Open the Styles menu and configure:
    • Variant: Select Heading XL from the drop-down.

Configure the Text input components

Configure the Batch ID text input

• Select the first Text input component in the canvas and go to the Properties panel.
  • Open the Main menu and configure:
    • Component ID: Select the Edit (pencil) button and enter 'batchId' and select the Save (floppy disc) button.
    • Label: Enter the text: Batch ID
    • Placeholder: Enter the text: BATCH-001

Configure the Interface text input

• Select the second Text input component in the canvas and go to the Properties panel.
  • Open the Main menu and configure:
    • Component ID: Select the Edit (pencil) button and enter 'interface' and select the Save (floppy disc) button.
    • Label: Enter the text: Interface
    • Placeholder: Enter the text: INVOICE

Configure the Data grid component

In this example we configure the component as follows:

• Select the Data grid component in the canvas and go to the Properties panel.

  • Open the Main menu and configure:
    • Enable the Enable data import checkbox. This feature will enable the Import button in the Three dots menu of the rendered component, allowing the end user to import data from an Excel file.

  • Open the Columns menu and configure the following columns:

    Column 1:

    • Column ID: Enter the text: invoiceNumber
    • Title: Enter the text: Invoice number
    • Width: Select Stretch fom the drop-down.
    • Datatype: Select Text from the drop-down.

    Column 2:

    • Column ID: Enter the text: amount
    • Title: Enter the text: Amount
    • Width: Select Stretch fom the drop-down.
    • Datatype: Select Number from the drop-down.

    Column 3:

    • Column ID: Enter the text: currency
    • Title: Enter the text: Currency
    • Width: Select Stretch fom the drop-down.
    • Datatype: Select Text from the drop-down.

Go to the Resources tab:

Create the Send batch data resource

To configure the resource, follow these steps:

1. Select the Plus (+) button on top of the left panel to create a new resource.
2. Select the new resource on the left panel.
3. Select the Pencil icon to change the name to 'Send batch data'

4. Select HTTP from the Type menu on the right and configure:

   1. Configuration section:

      • URL: Enter https://postman-echo.com/post
      • Method: Select POST from the dropdown.

   2. Content definition section:

      • Body Data Type: Select JSON from drop-down.
      • Content: Delete the curly braces and copy and paste the following Liquid template JSON:

      json copy [ {% for item in dataGrid1.rows %} { "header": { "batchId": "{batchId.value}", "interface": "{interface.value}" }, "transaction": { "id": { forloop.index0 }, "invoiceNumber": "{item.invoiceNumber}", "amount": {item.amount}, "currency": "{item.currency}" } } {% if forloop.last == false %},{% endif %} {% endfor %} ]

Note: This Liquid template iterates through each row in the Data grid component: dataGrid1, and creates a JSON object for each transaction. The forloop.index0 provides a zero-based index, and the conditional comma ensures proper JSON formatting. See the understanding liquid template section for more details.

Go to the Canvas tab:

Configure the Button component

In this example we configure the component as follows:

• Select the Button component in the canvas and go to the Properties panel.
  • Open the Main menu and configure:
    • Text: Enter the text: Send data.
  • Open the Styles menu and configure:
    • Icon before: Select the Send icon from the drop-down.

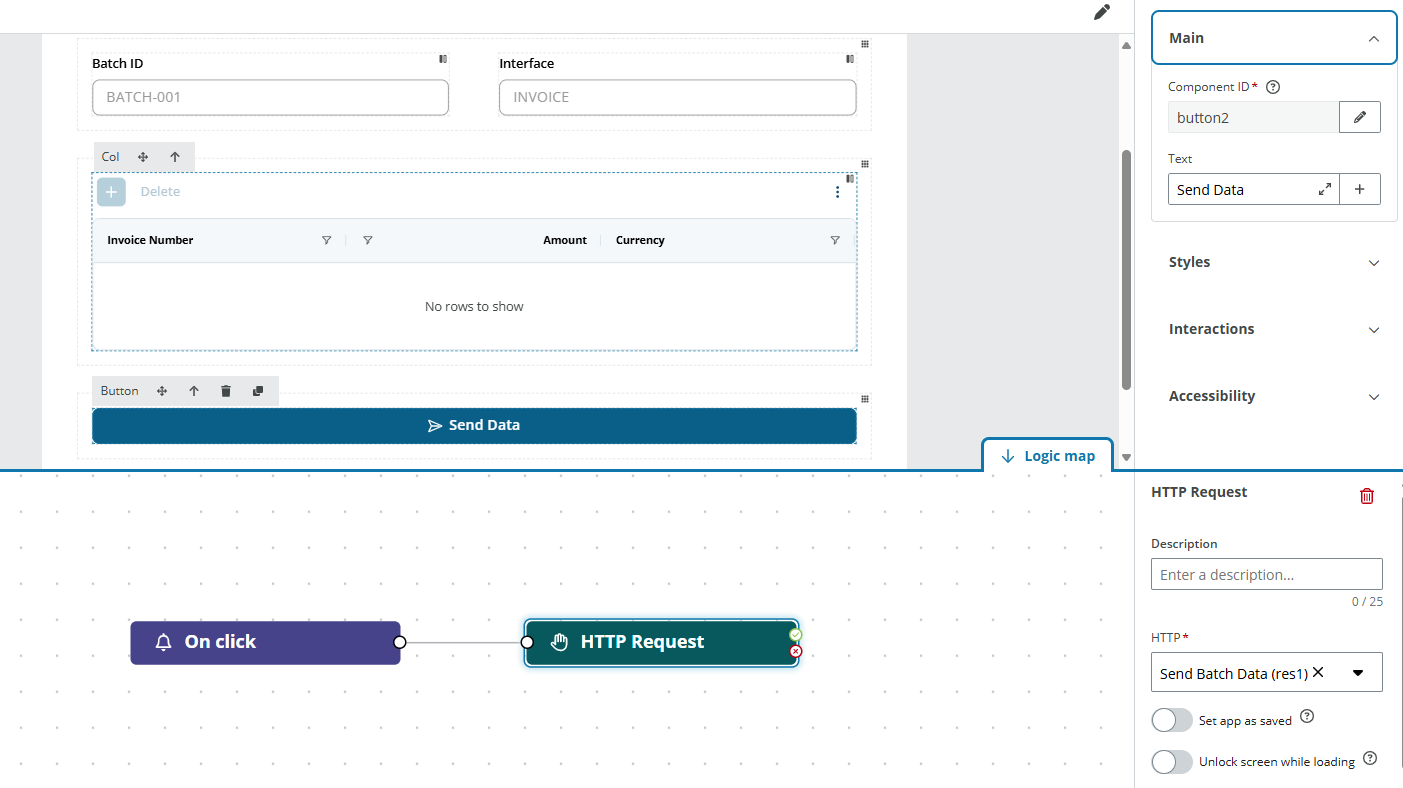

  • Open the Logic map tab in the bottom-right corner and configure:
    • Drag the On click event to the viewport.
    • Drag the HTTP Request action to the viewport and connect it to the On click event.
    • Select HTTP Request action in the viewport to see the Properties panel to the right.
    • Open the HTTP drop-down.
    • Select the resource Send Batch Data (res1).

Finally, after configuring the components and the resource, select the Save draft button and preview your app.

Note: See the Components documentation, resources and logic drawer for more details.

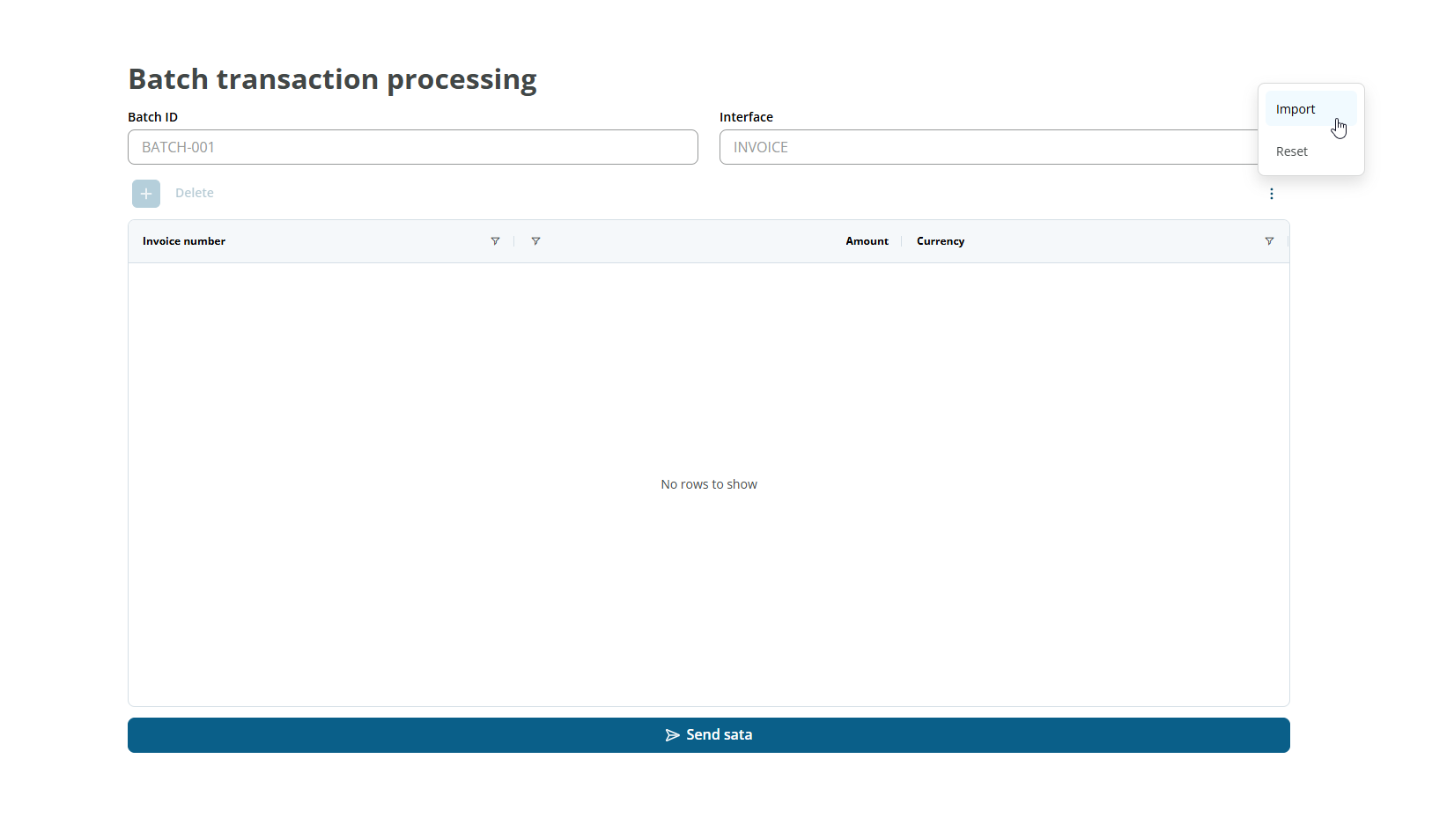

Example of usage

The following example shows how the end-user of the app should use the app:

1. Text input Configuration: The user enters in the corresponding components:

   • Batch ID: BATCH-001
   • Interface: INVOICE

2. Data Import: The user imports an Excel file with the following content:

   • Row 1:
     • Column A: INV-100
     • Column B: 500
     • Column C: USD
   • Row 2:
     • Column A: INV-101
     • Column B: 750
     • Column C: EUR

3. Generated Request Body: After the user selects the Send data button, the following JSON will be sent: json [ { "header": { "batchId": "BATCH-001", "interface": "INVOICE" }, "transaction": { "id": 0, "invoiceNumber": "INV-100", "amount": 500, "currency": "USD" } }, { "header": { "batchId": "BATCH-001", "interface": "INVOICE" }, "transaction": { "id": 1, "invoiceNumber": "INV-101", "amount": 750, "currency": "EUR" } } ]

Understanding Liquid template

The Liquid template used in this tutorial demonstrates several key concepts:

• Loop iteration: {% for item in dataGrid1.rows %} iterates through each row in the Data grid component with the ID dataGrid1.
• Component values: {batchId.value} and {interface.value} access the current values of Text input components.
• Row data access: {item.invoiceNumber} accesses column data from the current row.
• Loop indexing: { forloop.index0 } provides a zero-based counter for each iteration.
• Conditional logic: {% if forloop.last == false %},{% endif %} adds commas between JSON objects but not after the last one.

This approach allows for dynamic generation of complex request bodies that scale with the amount of imported data.
