Create a flow

To create a flow, select the New flow button in the Bottom toolbar of the Flow overview section to open the Flow editor.

The Flow editor has two sections:

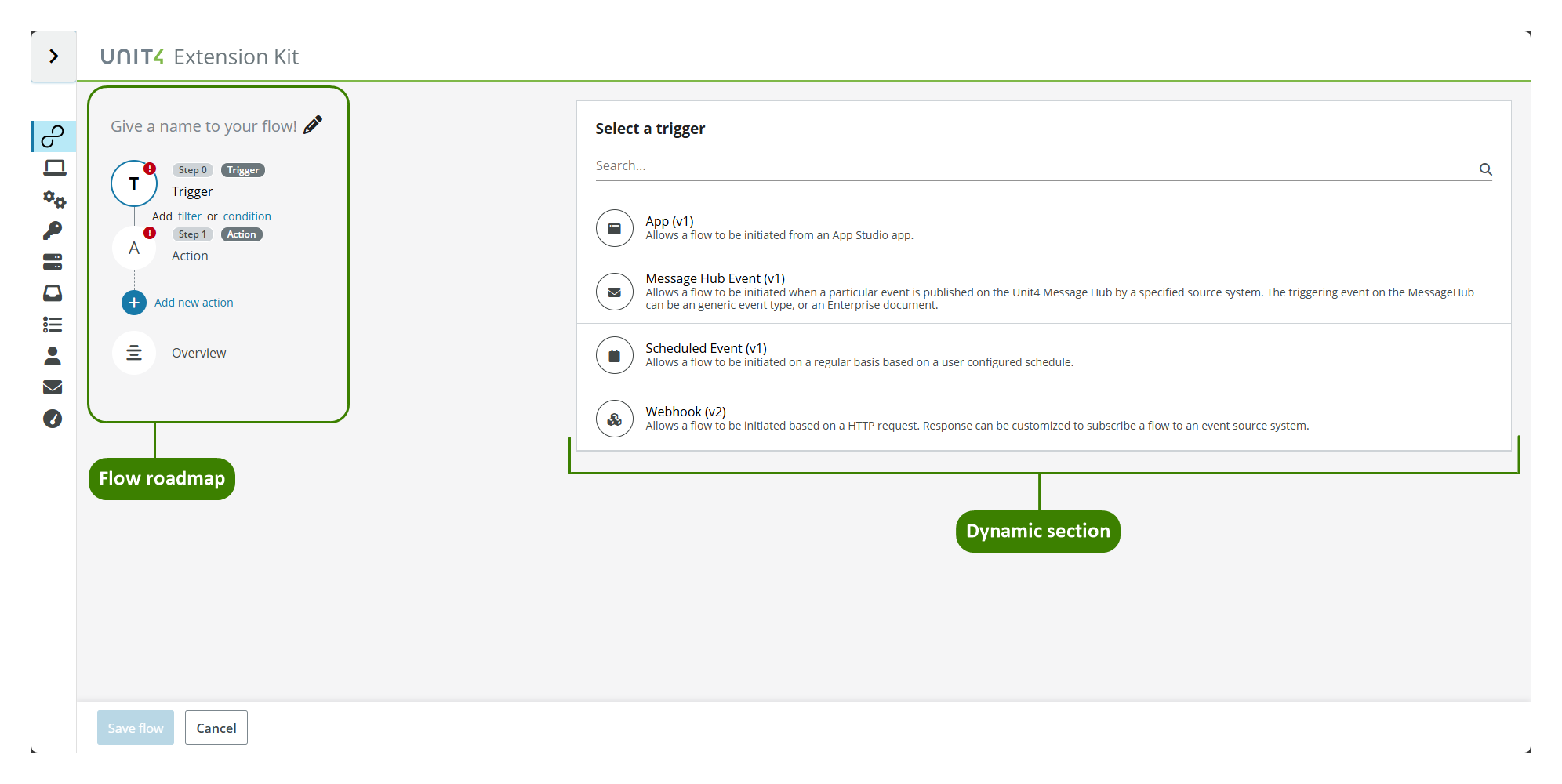

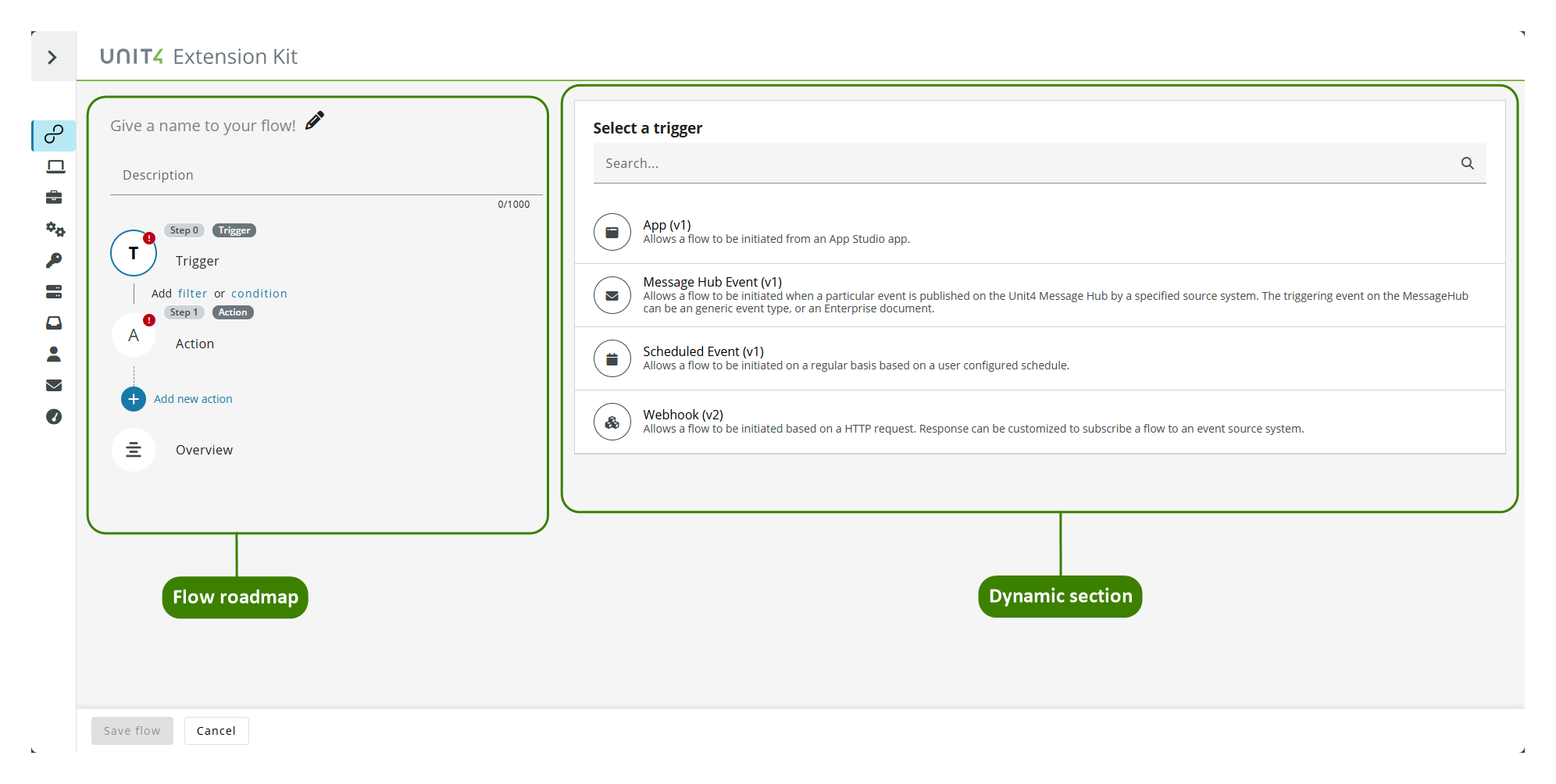

Flow editor

  1. The Flow roadmap: The section on the left defines the roadmap of the flow and has the following subsections:
Section Description
Flow name Select the Pencil icon to enter the name of your flow. You must follow the flow naming convention. This field is mandatory.
Flow description Provide a meaningful description of the flow's purpose and functionality. This field is optional.
Trigger To select and configure the trigger of the flow.
Add filter Dynamic section, which you can optionally define, that allows you to stop a flow depending on the output of the previous step of the action associated to it. This way the flow will react to more specific events.
Add condition Dynamic section, which you can optionally define, that allows you to conditionally skip the action it is associated with.
Action To define what actions will follow a triggered event. The flow must contain at least one action.
Overview Summary of the state of the flow. See the Overview section for more details.
  1. The Dynamic section: The section on the right side dynamically changes depending on what you choose on the left, allowing you to enter values relevant only to the currently chosen element.

Name your flow

To save your flow you must first name it. To name your flow:

  1. Go to the top of the Flow roadmap section.
  2. Select the Pencil icon.
  3. Enter the name of your flow following the flow naming convention.

Note: You can only save a flow if the name, trigger and all actions are properly defined.

Flow naming convention

You must follow the naming convention for the flows created in the Preview and Production environments as shown in the example below:

[Owner]-[ShortName]-[Group]-[FlowName]-[FlowType]-[Version]

Component Description Example
Owner Identifier of the owner. U4, if the flow was created by Unit4.
ShortName Short name of the tenant ID given in the Portal. ACME
Group Logical grouping or module reference for related flows up to 6 characters. HR, FIN, CRM, PRJ, SALES
FlowName Short name of the Trigger or source. SE - Scheduler Event, MH - Message Hub Event, WH - Webhook
FlowType The domain object or function the flow relates to. employee, if the flow uses the Employee object in the ERP public API.
Version Current version of the flow. v1, v2, etc.

Example

U4-ACME-HRCRDN-SE-employee-v1

This represents a flow created by Unit4 (U4), for the ACME tenant, under the HRCRDN (HR – Business process, CRDN – Ceridian platform) grouping, triggered by a Scheduler Event (SE), related to the Employee object, version 1.

Note: Only letters, numbers, spaces, dashes, underscores, periods, brackets, square brackets and ampersands are allowed.

Trigger configuration

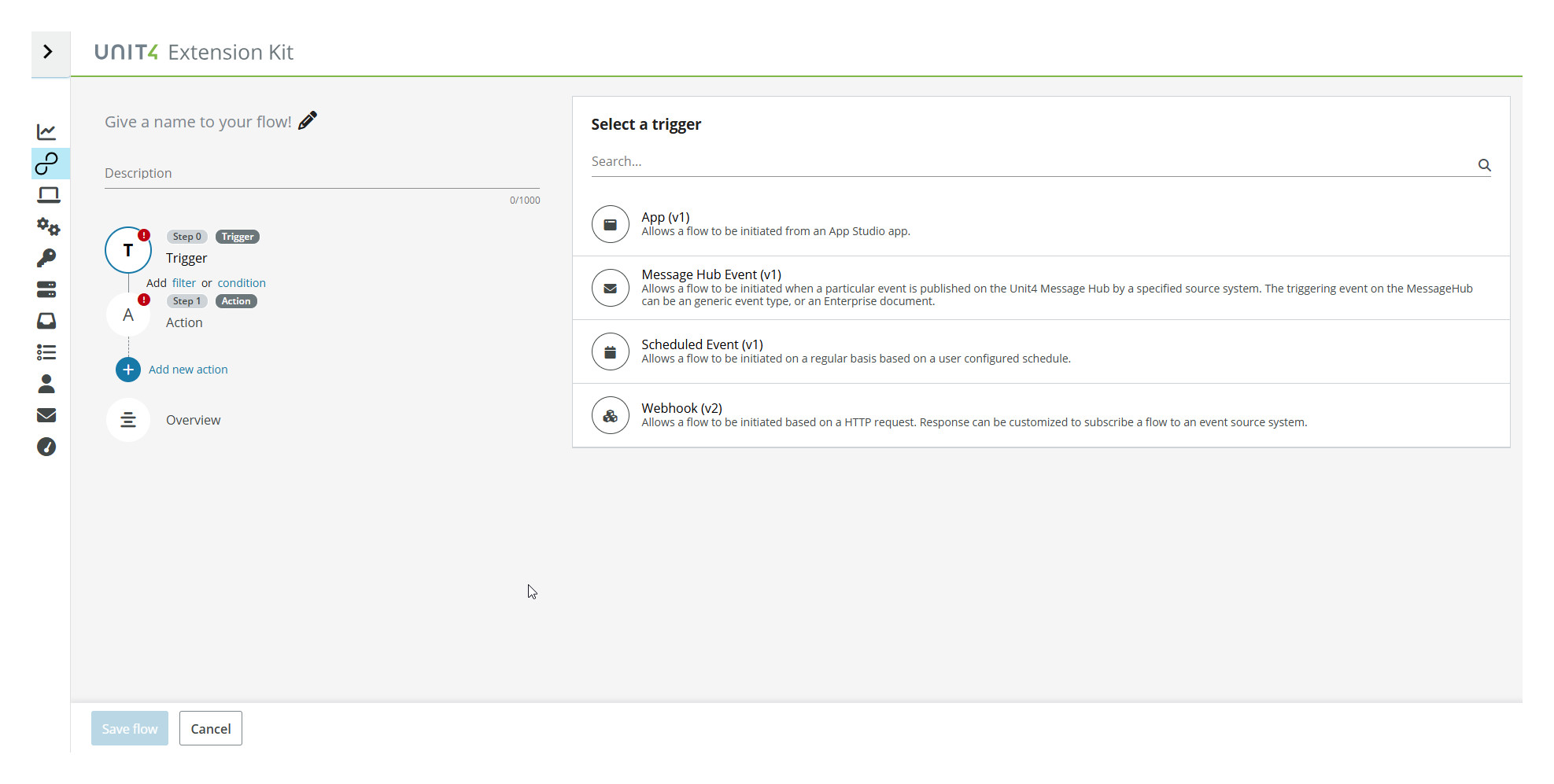

Add trigger

The trigger defines what will start your flow. To create a new flow:

  1. Select the Trigger node in the Flow roadmap and the Dynamic section will show you all the triggers that you can add.

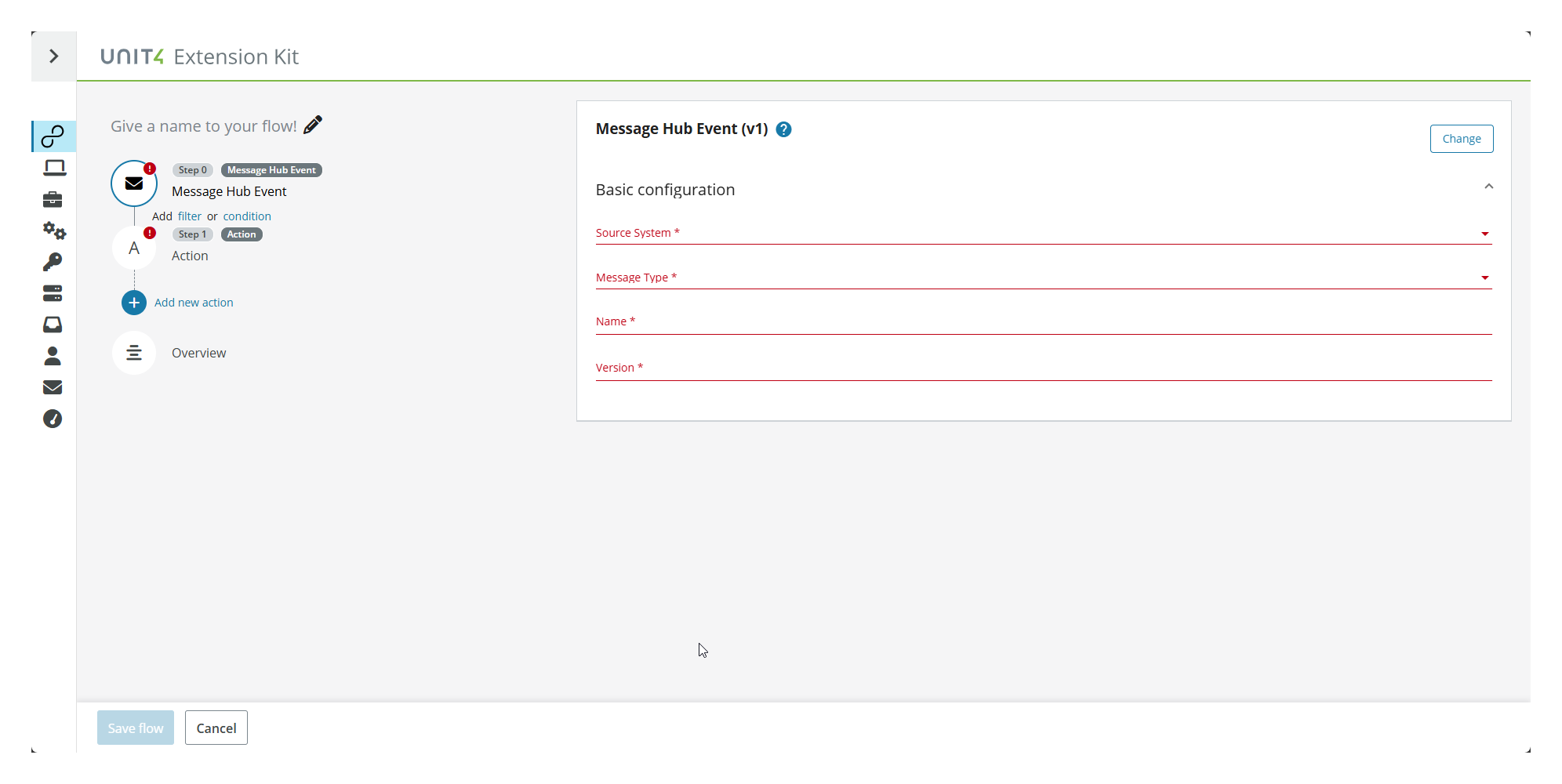

  2. Select the type of Trigger and then configure it by entering the relevant properties. These are dynamic and will differ according to the type of trigger you configure. Go to Extensions > Triggers to see all the available triggers and their configuration.

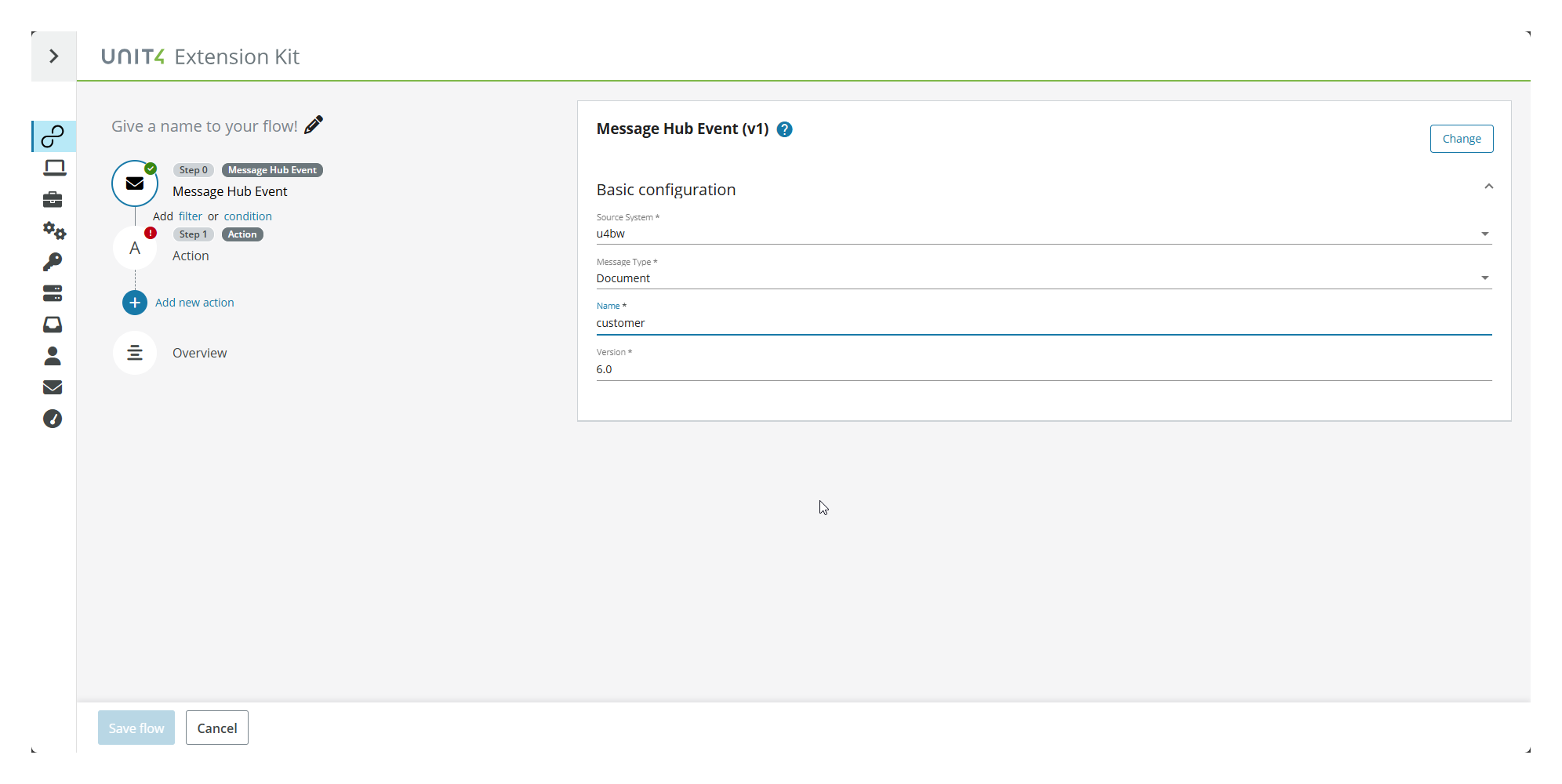

  3. When all the required information is provided the Trigger node is marked with a green check mark in the Flow roadmap.

Action configuration

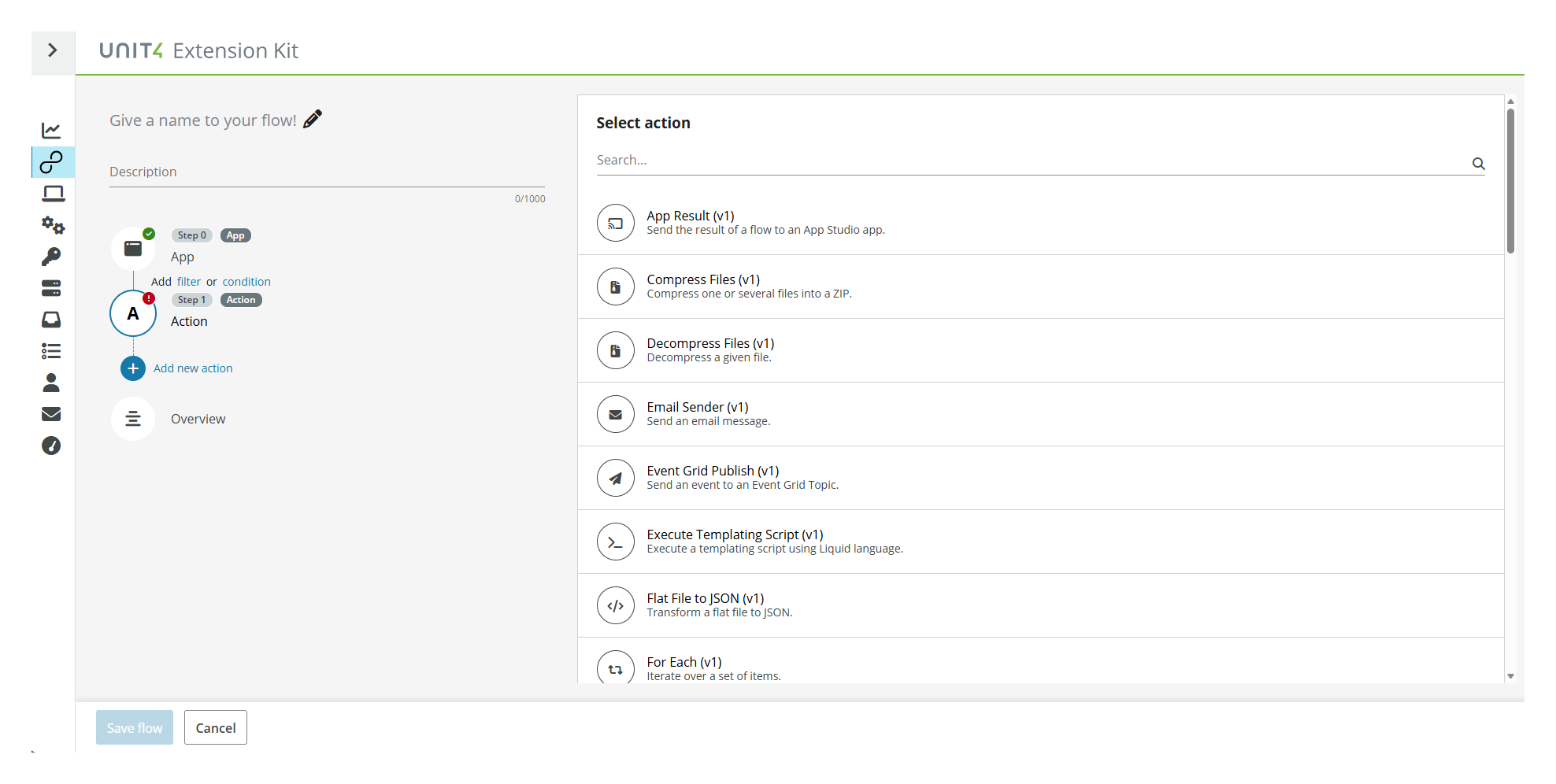

Add flow, action overview

To add actions to your flow, you must:

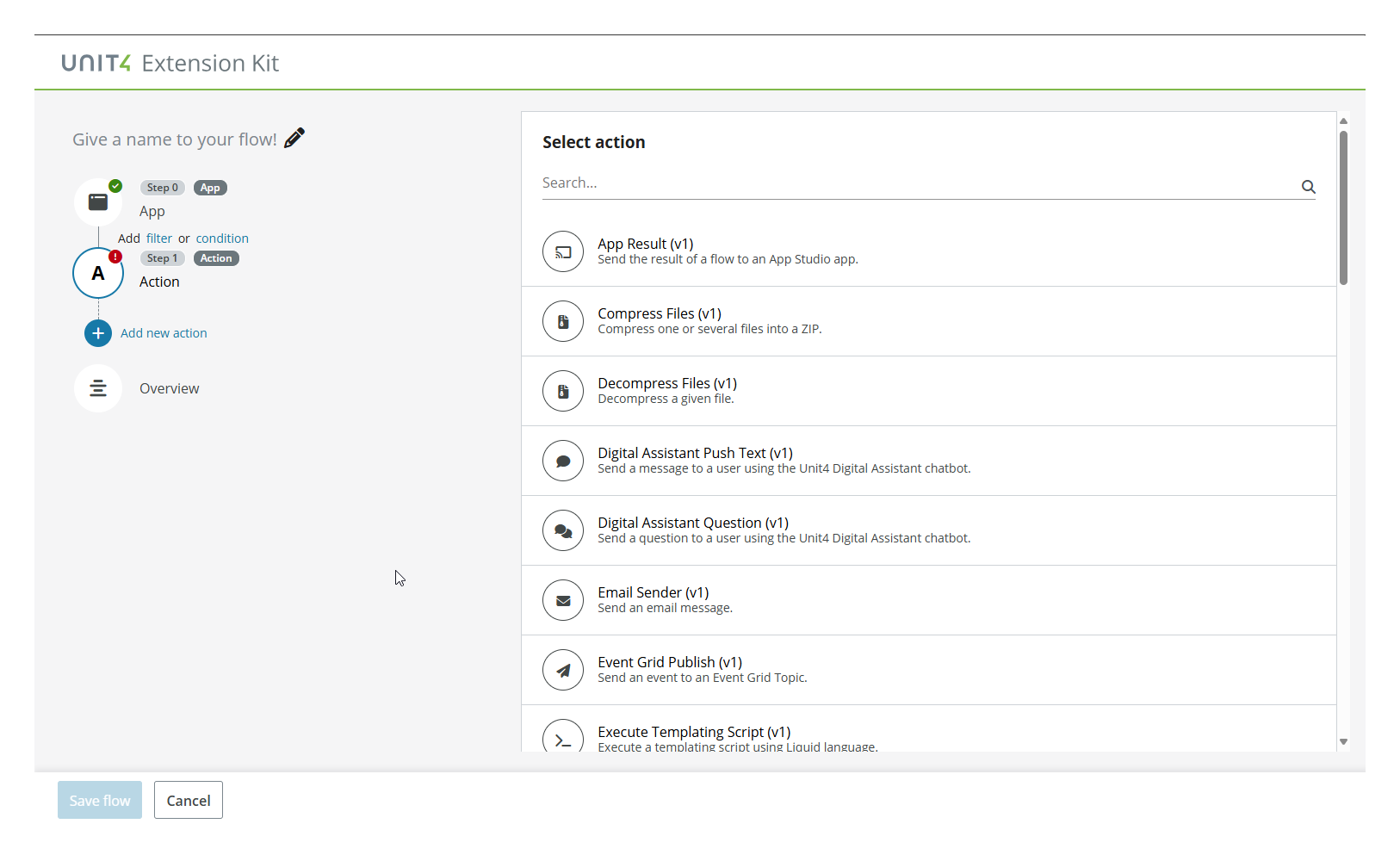

  1. Open the list of available actions in the Dynamic section of the editor. To open it, you must:

    • Select the action placeholder from the Flow roadmap for the first action.
    • Select the Add new action button from the Flow roadmap for further actions.

  2. Select an action.

  3. Fill in all the required fields of the Action configuration section to set up the action. Go to Extensions > Actions to see all the available actions and their configurations.

Note: All flows must have at least one action.

Templating in actions

To use other actions outputs as inputs, you can:

Note: When the focus is lost from the input, these input data fields are rendered as chips.

Overview section

This section allows you to see:

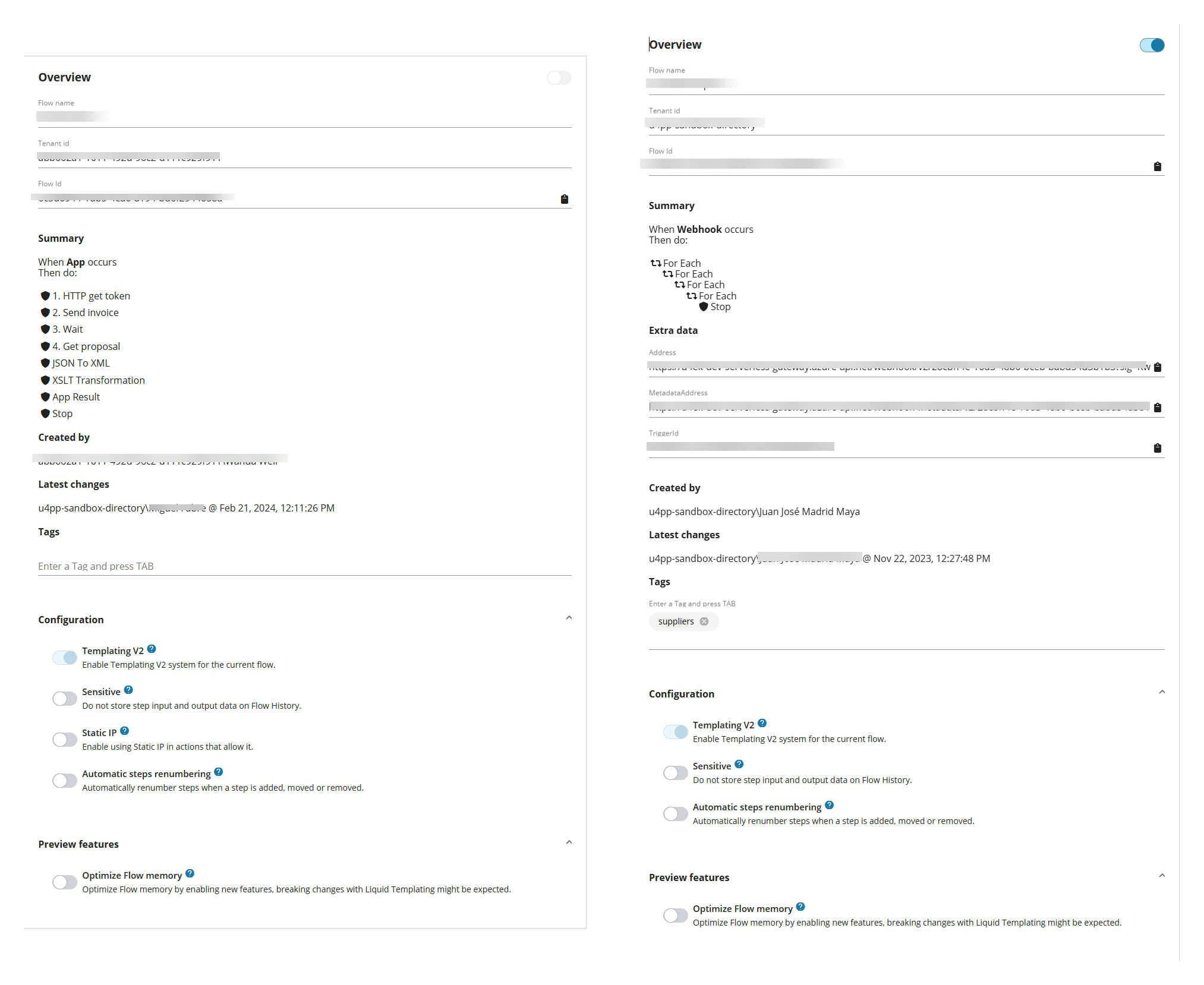

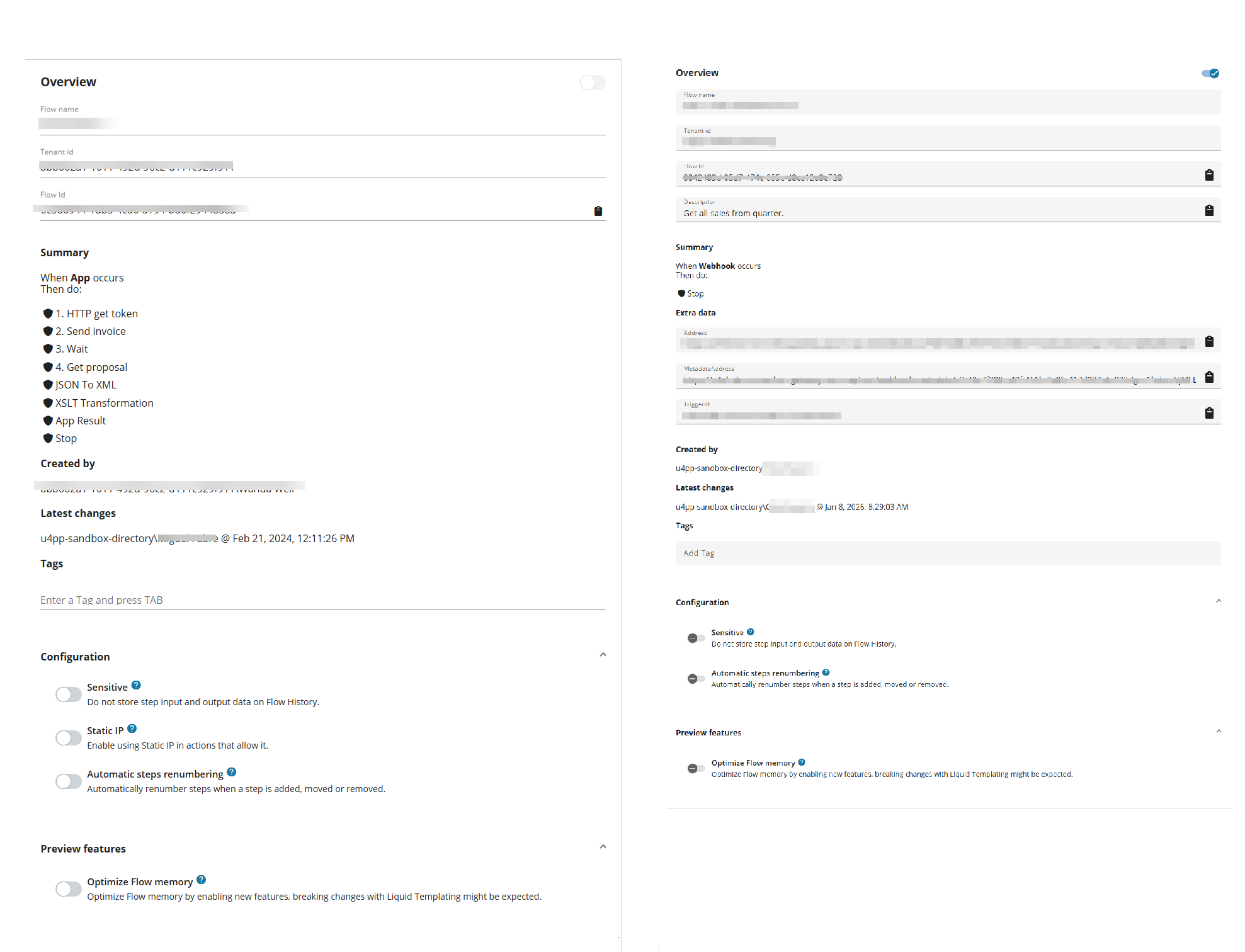

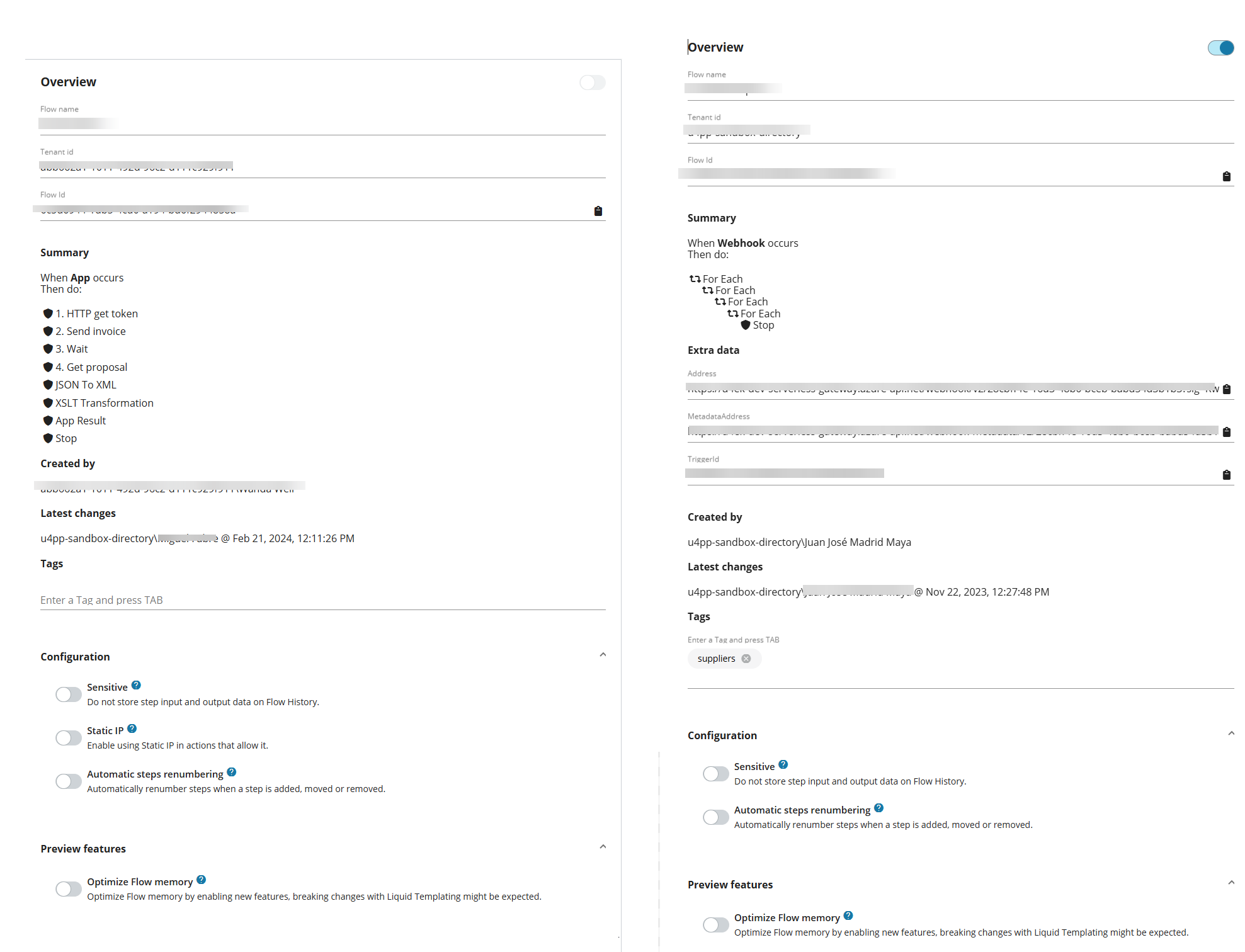

Overview summary

The Overview section shows:

Field Description
Flow name The name of the flow.
Enable/disable flow switch Turn on and off to enable or disable the flow. A blue switch indicates that the flow is enabled and a grey switch that the flow is disabled.
Tenant ID The tenant hosting the flow.
Flow ID Unique ID number generated by Extension Kit when a flow is saved to identify the flow.
Flow description A meaningful description of the flow's purpose and functionality. Only visible if defined while creating the flow.
Summary A summary of your flow that lists all the actions included in the flow.
Extra data This section appears after you have created a flow with a Webhook trigger. See Webhook (v2) for more details. It has the following data:
• Address: URL to trigger the flow.
• Meta data address: Provides an endpoint that returns the metadata in Swagger / OpenAPI format. For example, this metadata address can be used when using the Logic app's Http plus Swagger connector.
• Trigger ID: Unique ID number generated by Extension Kit to identify the trigger.
Created by The developer who created the flow.
Latest changes Date and developer to implement the last changes to the flow.
Tags Enter up to five tags to label your flow. Only owner and contributor roles can update tags:
• Enter your text and press tab to create the different tags.
• Each tag must contain only lowercase letters, numbers, dashes or underscores. White spaces are not accepted.
• Maximum 15 characters.
• Tags will be displayed in the flow card.
• Select the Cross icon button to remove a tag.
Configuration settings • Sensitive: Turn on to disable input and output data storage in the flow history.
• Static IP: Turn on to enable the use of static IP in the actions that allow it. Available only when activated as a feature by Unit4.
• Automatic steps renumbering: Turn on to automatically renumber steps when these are added moved or removed from the flow.
Preview features Features that are not yet in production:
• Optimize flow memory: Turn on to apply optimizations to Liquid templating to improve memory consumption. Caution it might cause breaking changes. See optimize flow memory for more details.

Exit flow creation

If you decide to leave the creation process, select the Cancel button and a confirmation window appears prompting you to leave the process.

Add flow, cancel process confirmation
