Checkbox
The Checkbox component gives users a binary choice (select/clear).
Example

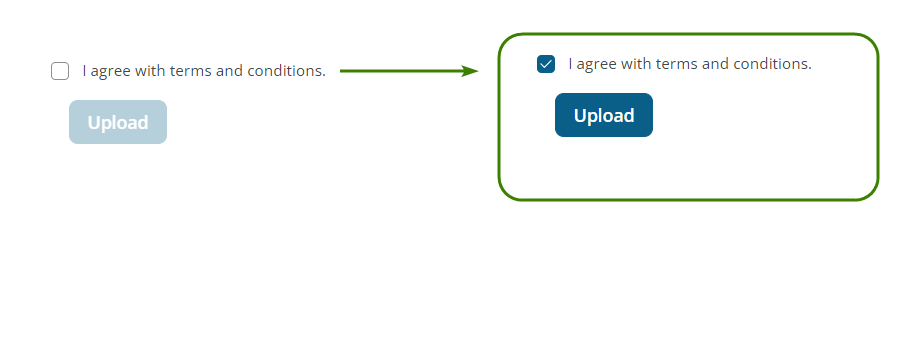

You can use the Checkbox component to make sure the user agrees to continue with a process. In this example, the button becomes active when the user agrees to terms and conditions.
Note: The Checkbox component follows the WCAG 2.0 AA accessibility guidelines.
Properties
The following Checkbox component properties are available:
Main properties
The following table describes the main properties of the component.
| Property | Description | Required |
|---|---|---|
| Component ID | Enter a unique name for the component. See Templating in components for more details. | Yes |
| Label | Enter the text you want to appear next to the checkbox. | Yes |
| Default value | Enter a Boolean value (true/false) to select/clear the component by default. You can use templating or write a string, for example, the string "true" will show a selected component. | No |
Note: See Templating drop-down for more details on rendering dynamic content using Liquid.
Interactions properties
The following table describes the interactions properties of the component.
| Property | Description | Required |
|---|---|---|
| Hidden | Select the checkbox to hide the component in the end-user app. To hide it in the canvas, use the eye icon in the Layers panel. | No |
| Add rule | You can set rules to hide the component using Liquid. If no rules are set, the component will be hidden in all instances. | No |
| Disabled | Select the checkbox to disable the component in the end-user app. | No |
| Add rule | You can set rules to disable the component using Liquid. If no rules are set, the component will be disabled in all instances. | No |
Note: See Add rules to trigger properties for more information on setting rules for these properties.
Accessibility properties
The following table describes the accessibility properties of the component.
| Property | Description | Required |
|---|---|---|
| Title | Enter a text that is displayed as a tooltip when hovering the mouse over the component in the end-user app. | No |
Events

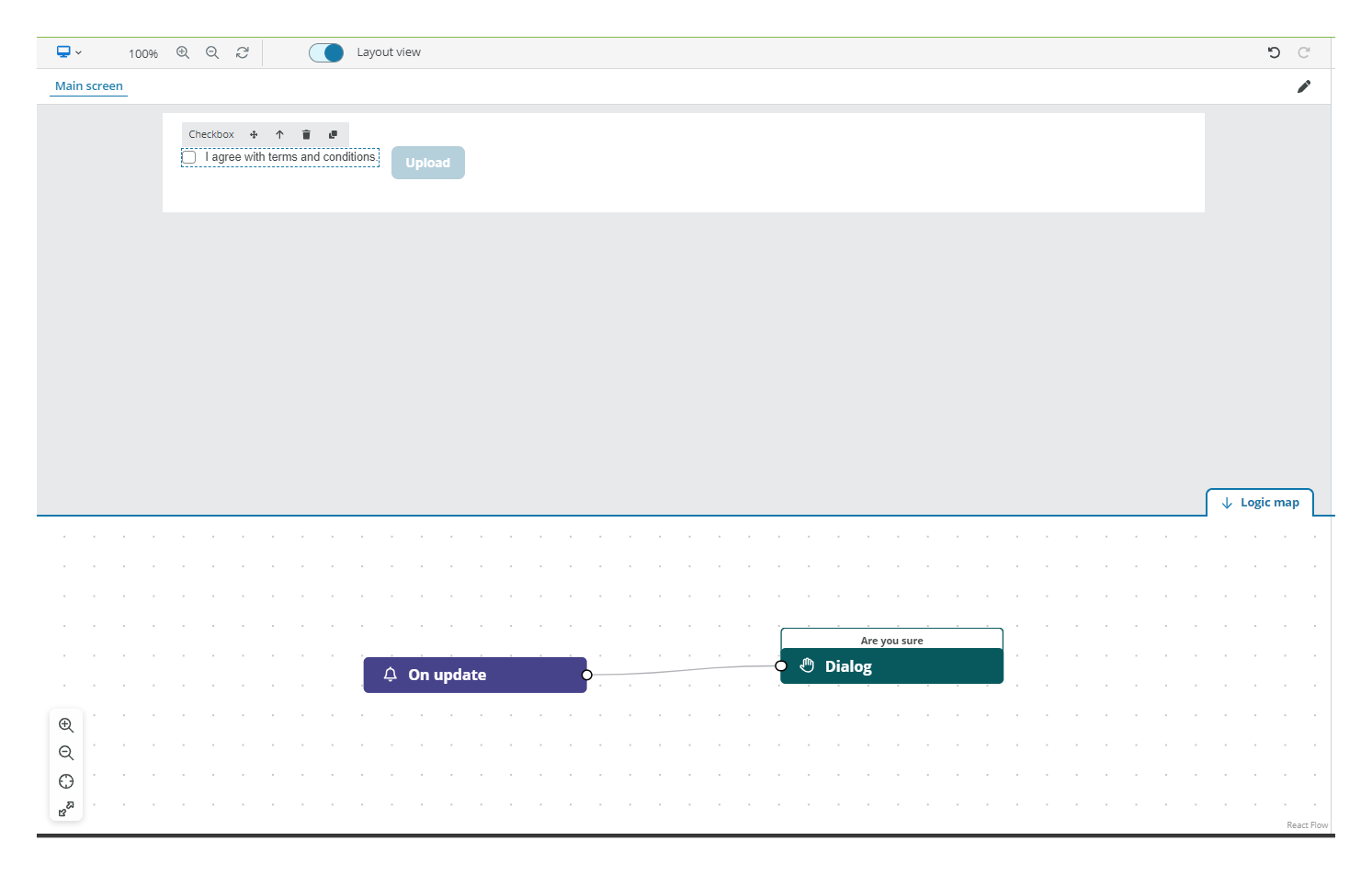

The Checkbox component supports the On update event. See Logic drawer for more details.
