If

Note: The If action is an early version and available only in non-production environments. Some behaviours and interactions are still being refined and the experience will continue to improve in upcoming releases.

Description

The If action allows a Flow to execute a block of actions only when a condition is met. Optionally, an Else block can be added to execute an alternative set of actions when the condition is not met.

Instead of adding the same condition to several individual actions, you can group those actions inside a single If action and evaluate the condition only once. When the condition is false, the whole block is skipped without executing any of the actions inside it.

Once the If action is set in the flow, you can add internal actions by clicking on the plus icon.

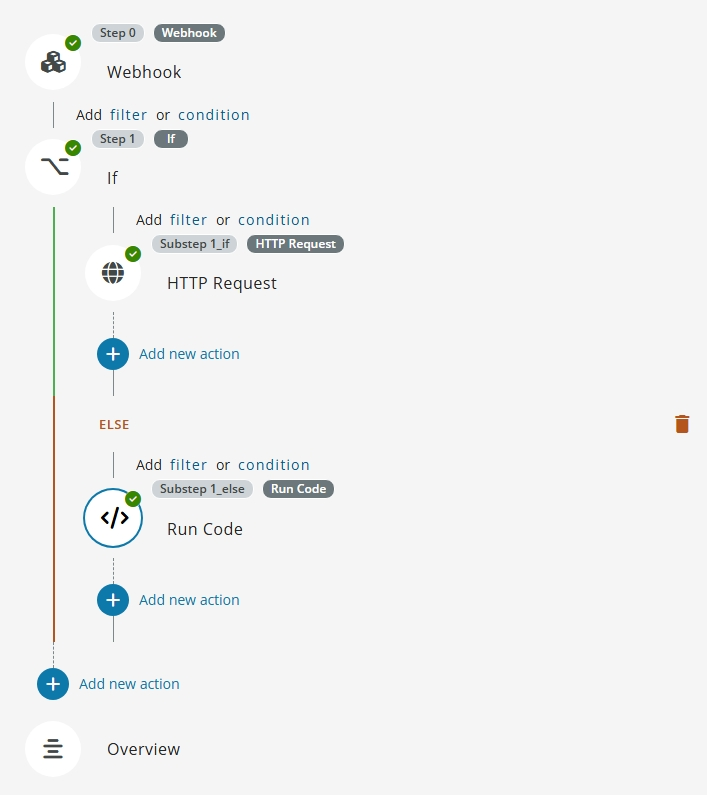

If Flow Designer

Condition

The condition of the If action is configured using the same editor and operators available for filters and conditions.

Blocks

An If action can contain the following branches:

When a branch is executed, the remaining branches are skipped without evaluating their conditions.

Internal references

Internal actions are those which are part of a branch of the If action. These actions have access to reference output results from other internal actions.

Output produced by an action inside a branch is available to the actions that run after the If action using templating expressions.

Nesting

An If action can be nested inside another If action, as well as inside (or containing) loop actions such as For Each and Until. When the outer condition is false, the entire nested content is skipped without evaluating the inner conditions.

Limitations
